Why Tile Pallets Arrive Damaged: 5 Logistics Fixes

Damaged tile pallets arrive at the receiving dock with cracked edges, chipped corners, and broken tiles scattered across the pallet. The damage appears after the tiles left the factory, but the root causes usually start at the loading stage.

This guide identifies common causes of transit damage and offers practical fixes. It covers stacking patterns, dunnage, container loading, and receiving procedures. The goal is to reduce waste and protect the investment in each pallet.

Where Damage Starts

Tile pallets are heavy and rigid. A single shift in the stack can break the top layer. The damage often looks like a pattern: corners crack first, then the center tiles chip. This happens when the pallet lacks proper support or when the container is overloaded.

The most common damage points are the top and bottom layers. The top layer takes impact from the container door opening and the forklift tines. The bottom layer takes impact from the container floor and any debris. If the pallet is too tall, the top layer bends and cracks. If the pallet is too short, the tiles shift and chip.

The first fix is to standardize pallet height. Most porcelain tile pallets fall into a few standard heights. Keeping the pallet height consistent across all shipments makes stacking easier. It also makes the pallet easier to handle with a forklift.

Stacking Patterns and Pallet Height

A common mistake is stacking too many layers on one pallet. The tiles compress the dunnage below them. The dunnage flattens. The tiles shift. The top layer cracks.

The fix is to limit the number of layers based on tile thickness and weight. Porcelain tiles are dense. They need more support than ceramic tiles. A pallet of 8 mm porcelain tile may need fewer layers than a pallet of 5 mm ceramic tile.

Use a consistent stacking pattern. A 2x2 or 3x2 pattern works well for most tile sizes. Avoid staggered stacking unless the pallet is designed for it. Staggered stacking can create weak points in the stack. The tiles above the stagger line may not have full support below.

Check the pallet base. A warped or damaged base plate shifts the entire stack. Replace base plates that have cracks or deep grooves. A flat, rigid base keeps the tiles aligned.

Dunnage and Edge Protection

Dunnage is the material between tile layers. It protects the tiles from direct contact and keeps the stack stable. Cardboard, foam, or corrugated plastic are common dunnage materials.

The most common dunnage failure is compression. Cardboard flattens under the weight of the tiles. Once it flattens, the tiles touch each other. The top layer cracks.

Use thicker dunnage for heavier pallets. Foam dunnage holds its shape better than cardboard. It is more expensive but lasts longer. For large shipments, foam dunnage pays off in reduced damage.

Edge protection is the second part of dunnage. The corners of the pallet take the most impact. Wrap the pallet edges in plastic or use corner guards. This stops the forklift tines from chipping the tiles.

Check the dunnage at the loading stage. If the dunnage is missing or thin, do not load the pallet. Fix it before the pallet leaves the factory.

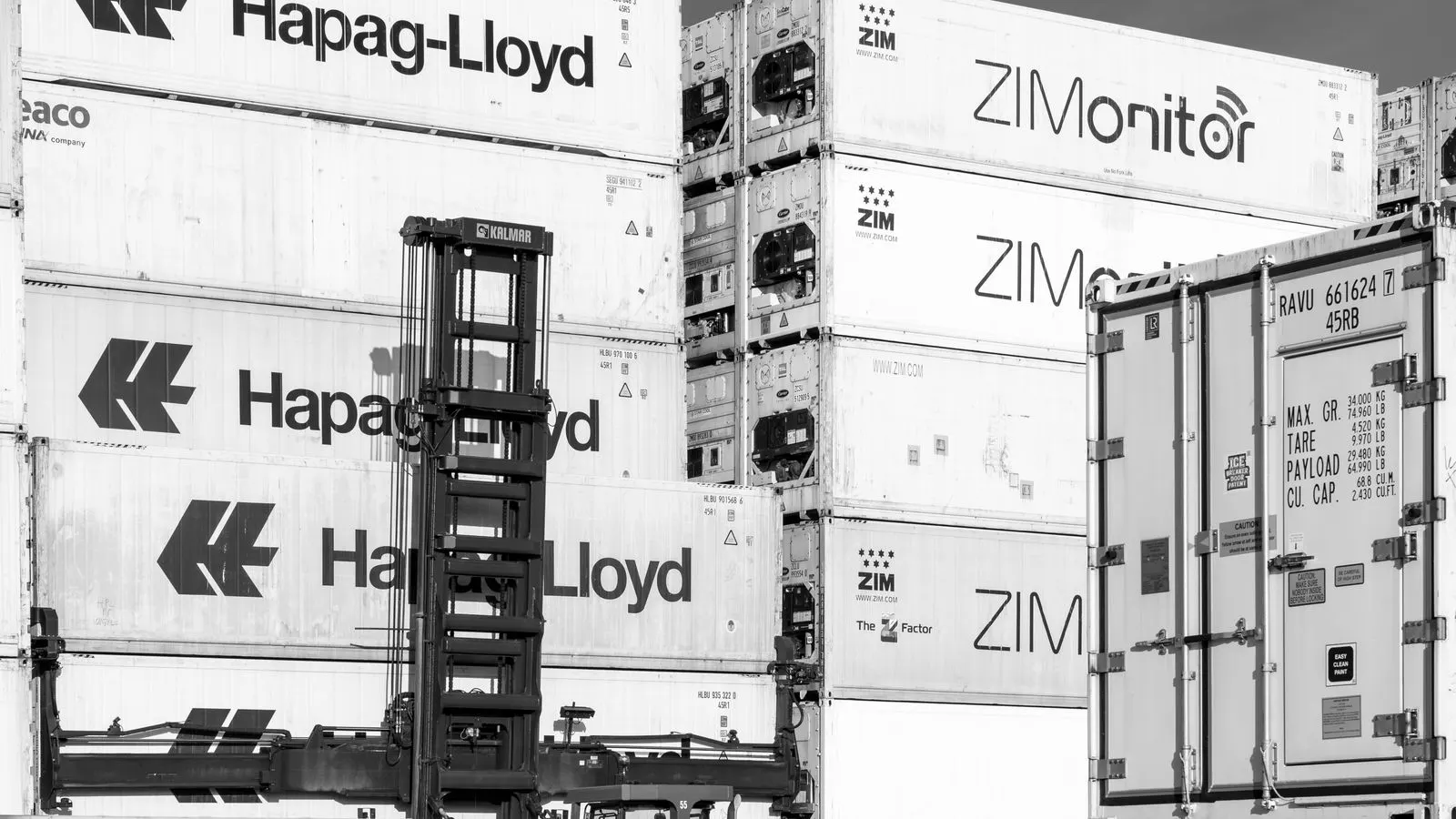

Container Loading and Weight Distribution

Container loading is where many tile shipments go wrong. The pallets are stacked in the container, and the weight shifts during transit. The container is not a static environment. It moves over roads and seas. The pallets slide and shift.

The fix is to use proper blocking and bracing. Load pallets in a way that distributes weight evenly. Avoid putting the heaviest pallets on top. The bottom layers take the most weight. Keep the center of gravity low.

Use blocking strips between pallet rows. This stops the pallets from shifting. Tape or straps can hold the pallets in place. Do not rely on friction alone. The pallets will move if the container turns.

Check the container floor. A wet or dirty floor creates a slippery surface. The pallets slide. Use dry, clean container floors. If the floor is wet, dry it before loading.

Load the pallets in a way that matches the receiving process. If the receiving dock uses a specific forklift, match the pallet dimensions to that forklift. This reduces the need to shift pallets in the container.

Receiving and Handling

The damage control process does not end at the container. The pallets still need to be moved to the storage area. This is where secondary damage happens.

The most common receiving mistake is using the wrong forklift. A pallet that fits one forklift may not fit another. The tines may not slide under the pallet correctly. The tines may hit the edge of the pallet. The tiles chip.

Train receiving staff on proper forklift operation. The tines must go all the way under the pallet. The pallet must be lifted straight up. No tilting. No sudden stops.

Inspect the pallets upon arrival. Check the top and bottom layers. Look for cracked corners and chipped edges. Document the damage with photos before moving the pallets. This creates a record for claims and for improving the shipping process.

If a pallet is damaged, do not move it until the damage is documented. Move it only after the photos are taken. This keeps the claim clean.

Supplier Communication and Packaging Specs

The final fix is to talk to the supplier. The packaging specs are often set by the manufacturer, but the buyer can request changes. If the same pallets arrive damaged every time, the packaging needs to be reviewed.

Ask the supplier for the pallet load spec. This includes tile size, layer count, dunnage material, and edge protection. Review the spec before placing the order. If the spec is weak, request changes.

For large orders, ask the supplier to test the pallets. Load a sample pallet and ship it. Check the damage rate. Adjust the spec if needed. This is cheaper than receiving a full container of broken tiles.

Keep a damage log. Record the date, supplier, pallet ID, and damage type. Share this log with the supplier. Use it to drive improvements in packaging and loading.

Summary Table: Damage Control, Shipping, and Handling Fixes

Symptom	Likely cause	What to do
Cracked top layer tiles	Pallet too tall, weak dunnage, or rough forklift handling	Reduce layer count, use foam dunnage, train forklift operators
Chipped corner tiles	Missing edge protection or forklift tine contact	Wrap pallet edges, use corner guards, inspect tines before lifting
Shifting tiles in container	Poor blocking, wet container floor, or uneven weight	Add blocking strips, dry the container floor, distribute weight evenly
Bottom layer damage	Warped base plate or debris in container	Replace base plates, clean container floor, check for debris
Recurring damage from same supplier	Weak packaging spec or inconsistent loading	Review packaging spec, request changes, share damage log with supplier
Secondary damage at receiving	Wrong forklift or improper unloading	Match pallet to forklift, train staff, inspect before moving

Prevention Checklist

1. Standardize pallet height across all shipments.
2. Use foam dunnage for heavy porcelain tiles.
3. Wrap pallet edges in plastic or use corner guards.
4. Load pallets with blocking strips and a low center of gravity.
5. Dry and clean the container floor before loading.
6. Train receiving staff on proper forklift operation.
7. Inspect pallets upon arrival and document damage with photos.
8. Review packaging specs with suppliers before large orders.
9. Keep a damage log and share it with suppliers.
10. Test sample pallets for new suppliers or new tile types.

FAQ

Q: What is the most common cause of tile pallet damage in transit?
A: Weak stacking and missing dunnage are the top causes. The tiles shift or compress, and the top layer cracks.

Q: Can foam dunnage replace cardboard dunnage for all tile types?
A: Foam works well for heavy porcelain tiles. For lighter ceramic tiles, cardboard may be sufficient. Match the dunnage to the tile weight and thickness.

Q: How should I document damaged pallets for claims?
A: Take clear photos of the damage before moving the pallets. Record the pallet ID, date, and supplier. Submit the photos with the claim.

Q: Do I need to block pallets inside the container?
A: Yes. Blocking strips stop the pallets from shifting. Friction alone is not enough. The pallets will move when the container turns.

Q: How often should I review packaging specs with suppliers?
A: Review them before placing large orders and after any recurring damage. Share the damage log to drive improvements.
